Specification:

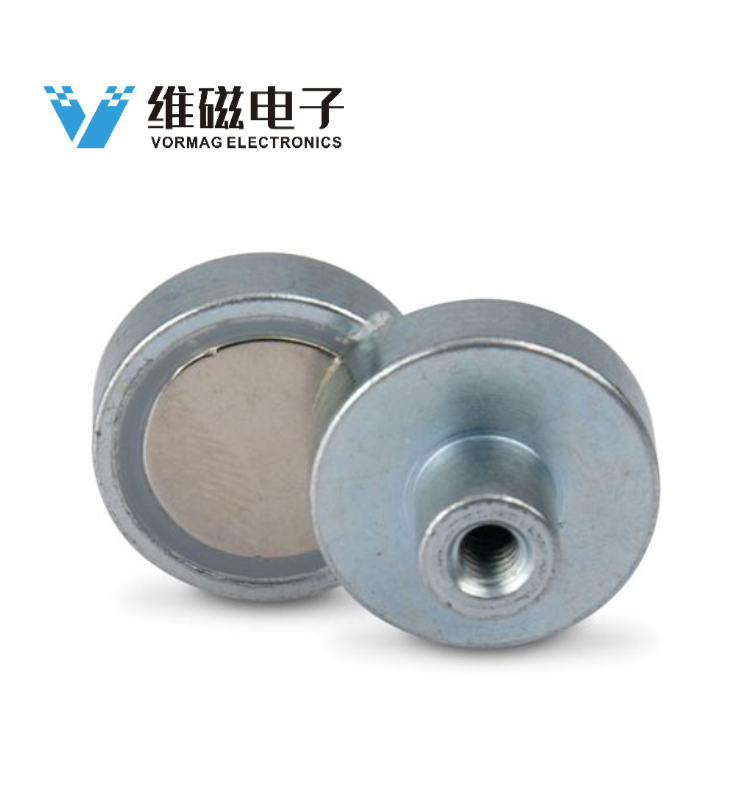

Neodymium pot magnets are specially made for holding purposes with female threaded stud. This is made of super strong neodymium magnets encased inside the chrome plated steel cups that creates a special magnetic circuit to greatly increase the holding power. The steel cup also protects the magnet from being damaged.
If you didn't find the parts will accommodate your application, simply write to us, we are able to offer you custom-made service or related questions.
Technical specification:
Shape: Internal Threaded Stud

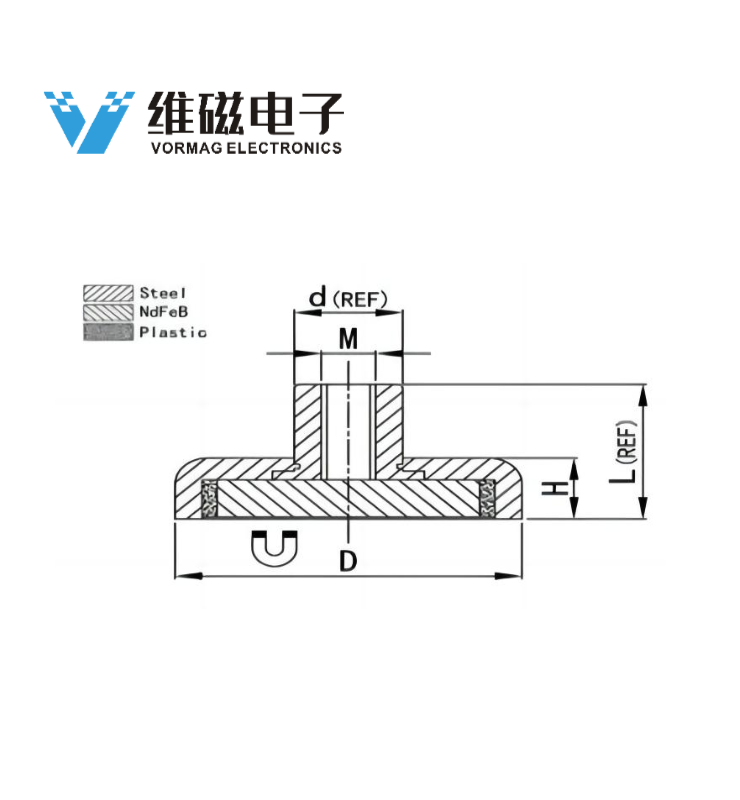

Pot Magnet Size:
Total Diameter (D): 20 mm
Magnet diameter (d): 6.5 mm
Height (H): 7.2 mm
Total Height (L): 15 mm
Thread M: M4
Plating / Coating: Zn (Zinc)
Weight: 17 g
Holding Force: 12 kg
Maximum Operation Temperature: 80 C
