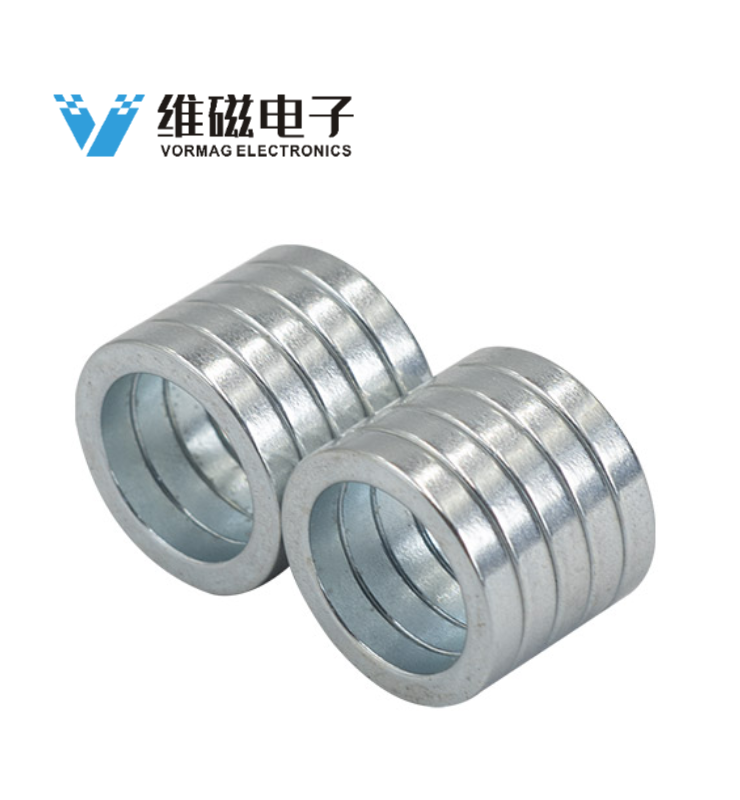

Our Neodymium rings have a variety of applications. From high-quality audio speaker systems to screwdrivers.
Technical specification:
Shape: Ring
Outer Diameter: 15mm
Inner Diameter: 11mm
Thickness: 2mm
Default tolerance: +/-0.1mm Or customize as required
Coating: zinc plated (Zn)
Magnetism direction: Axial Or Customized
Material: NdFeB (sintered neodymium-iron-boron)
Grade: N48
Neodymium magnets produce the highest MGOe of any permanent magnet material. The material and grade of a magnet refer to a set of properties which ultimately yield the magnet's performance. The strength of a magnet can be found in the magnet specification known as BHmax, which is the maximum energy density of a magnet. This is defined in Mega Gauss Oersteds, or MGOe. The most common used grades of neodymium magnets are N33, N35, N38, N40, N42, N45, N48, N50, N52, and N55.
Grade of Sintered Neodymium Magnet.pdf
